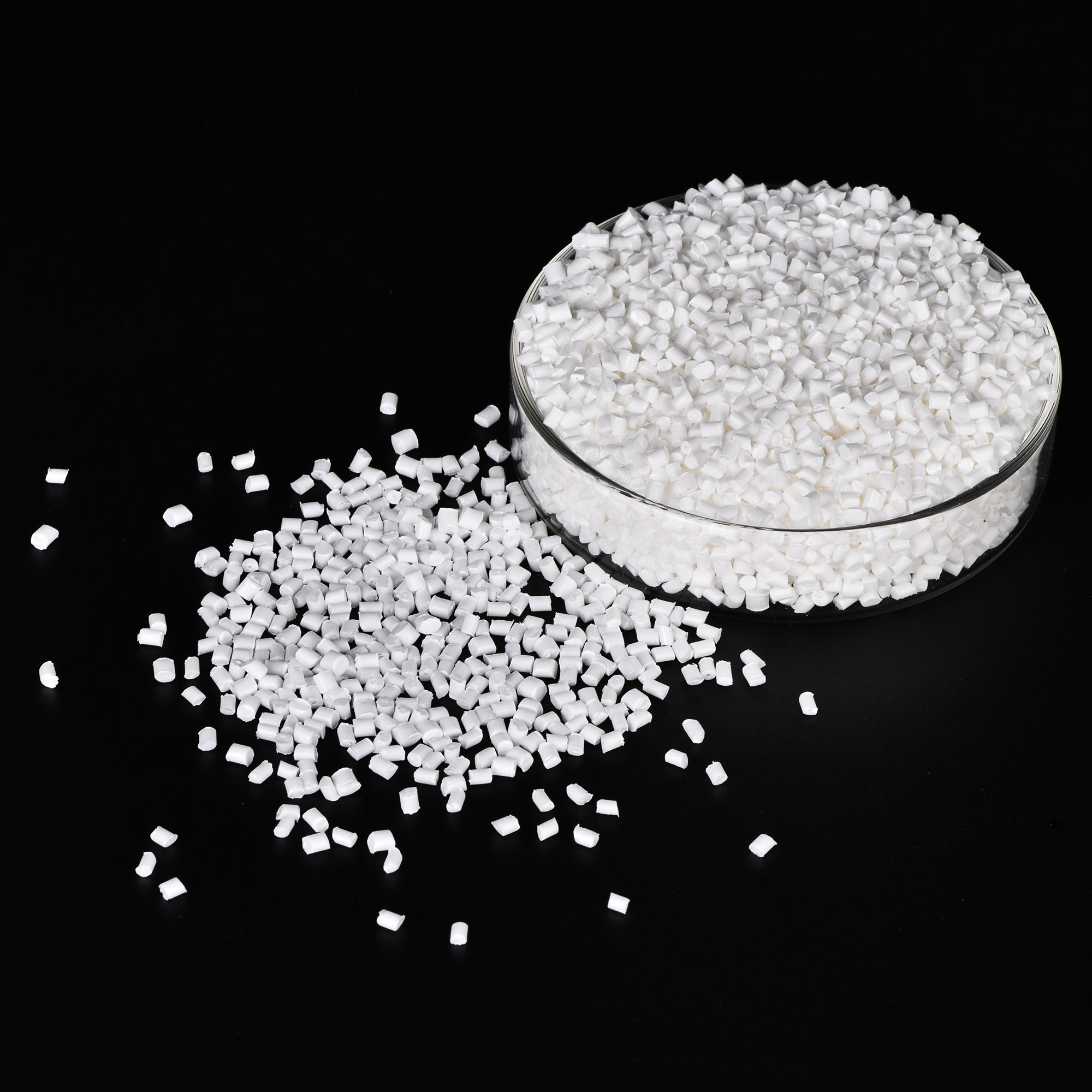

PA6 SD054X
PRODUCT DETAILS
PA6 SD054X (Semi-Matte) Material Data
PA6 SD054X is a semi-matte polyamide 6 material with excellent toughness, abrasion resistance, and stable processing performance. It provides balanced mechanical properties, making it suitable for automotive parts, mechanical components, and consumer applications requiring durability and a semi-matte finish.
Key Features
- Semi-matte surface appearance
- Excellent toughness and abrasion resistance
- Good tensile and flexural strength
- Stable processing with consistent performance
Typical Properties
| Property | Test Standard | Condition | Unit | SD054X |
|---|---|---|---|---|
| Specific Gravity | ASTM D792 | — | g/cm³ | 1.14 |
| Melt Flow Index | ASTM D1238 | 230℃ / 2.16kg | g/10min | 27 |
| Tensile Strength | ASTM D638 | 20 mm/min | MPa | 53 |
| Elongation at Break | ASTM D638 | 20 mm/min | % | 30 |
| Flexural Strength | ASTM D790 | 2 mm/min | MPa | 69 |
| Flexural Modulus | ASTM D790 | 2 mm/min | MPa | 1849 |
| Izod Impact Strength | ASTM D256 | 1/8 inch | kJ/m² | 5.8 |
| Heat Deflection Temp. | ASTM D648 | 1.8 MPa | ℃ | 62 |
| Flammability | UL-94 | 1.5 mm | Class | HB |
Injection Molding Recommendations
- Pre-drying Temperature: 100–110 ℃
- Pre-drying Time: 3–4 hours
- Melting Temperature: 240–260 ℃
- Mold Temperature: 60–80 ℃
Disclaimer
The property data listed are typical values for reference only. They are not guaranteed specifications and should not be used as inspection criteria. Users must evaluate the material under their own processing conditions to confirm suitability for intended applications. Responsibility for end-use performance lies solely with the user.
Source: Su Master New Materials (Guangdong) Co., Ltd. — Technical Data Sheet (SD054X) .
