PA6 SDG25A-NC
PRODUCT DETAILS
PA6 SDG25A-NC Material Performance Description

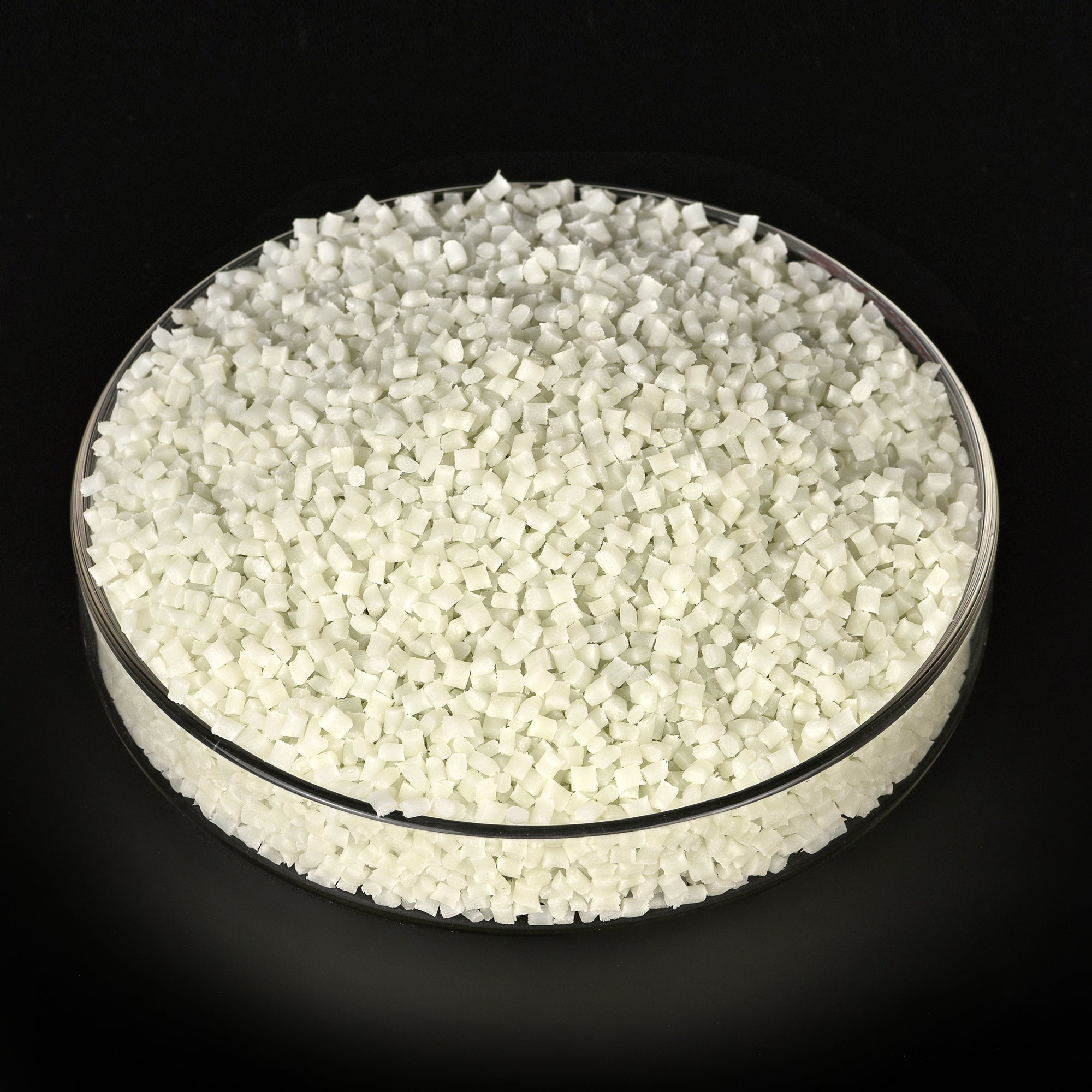

PA6 SDG25A-NC is a 25% glass fiber reinforced polyamide 6 (nylon 6) compound developed by Su Master New Materials (Guangdong) Co., Ltd.. This grade offers enhanced rigidity, excellent mechanical strength, improved heat resistance, and superior dimensional stability. It is ideal for engineering applications requiring strong structural performance and long-term durability.
✅ Key Physical, Mechanical & Thermal Properties
| Property | Test Standard | Condition | Unit | PA6 SDG25A-NC |
|---|---|---|---|---|
| Specific Gravity | GB/T 1033 | — | g/cm³ | 1.27 |
| Melt Index | GB/T 3682 | 275℃ / 3.8kg | g/10min | 30 |
| Tensile Strength | GB/T 1040 | 10mm/min | MPa | 110 |
| Elongation at Break | GB/T 6344 | 10mm/min | % | 13 |
| Flexural Strength | GB/T 9341 | 2mm/min | MPa | 150 |
| Flexural Modulus | GB/T 9341 | 2mm/min | MPa | 5616 |
| Izod Impact Strength (Notched) | GB/T 1843 | 3.2mm, 23℃ | KJ/㎡ | 25.6 |
| Heat Deflection Temperature | GB/T 1634 | 1.8MPa | ℃ | 175 |
| Fire Rating | GB/T 2048 | mm / 1.5 min | — | HB |
✅ Recommended Injection Molding Conditions
- Pre-drying Temperature: 90–100℃
- Pre-drying Time: 4–6 hours
- Melting Temperature: 250℃
- Mold Temperature: 80–100℃
Note: All technical data provided above are for reference only and shall not be regarded as guaranteed values. Users must verify material suitability according to their specific application and processing requirements.
