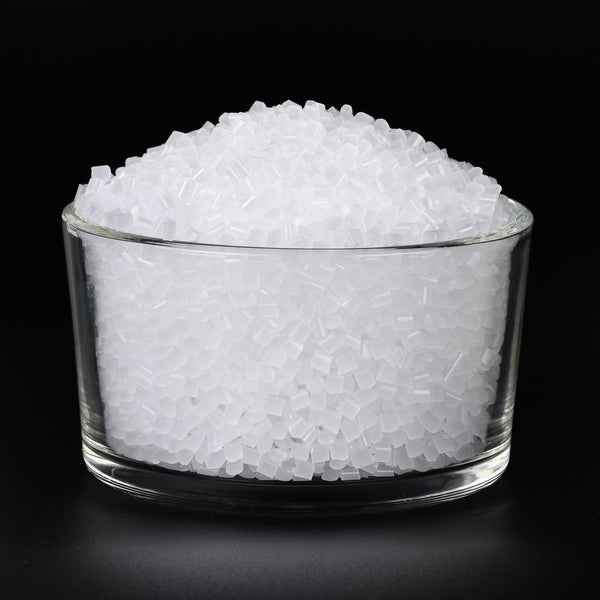

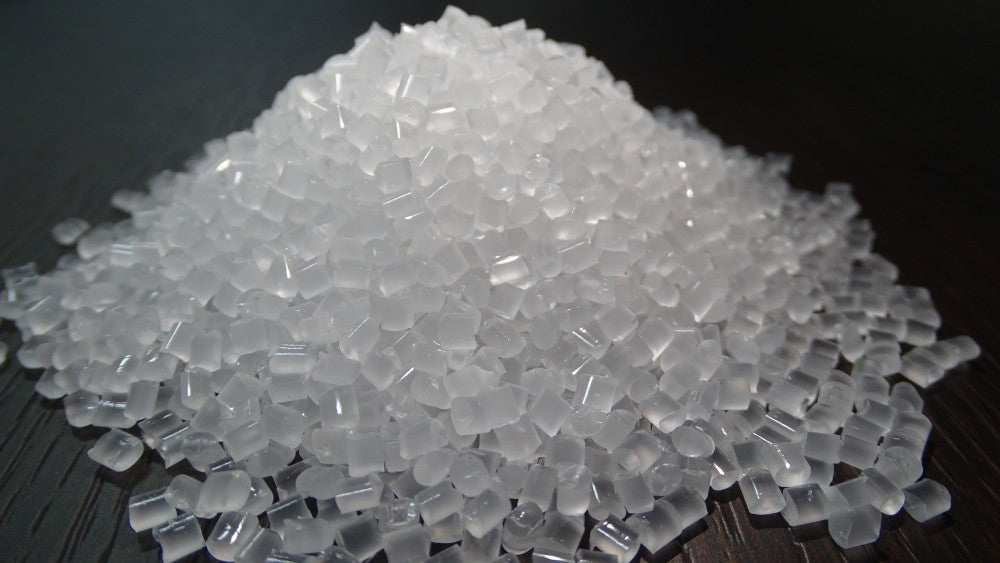

PMMA AM2630G
PRODUCT DETAILS
PMMA AM2630G (Light Diffusion) Material Data
PMMA AM2630G is a light diffusion polymethyl methacrylate offering high haze, good light transmittance, and excellent durability. With balanced mechanical and optical properties, it is widely used in lighting, decorative panels, and optical applications requiring uniform illumination.
Key Features
- High light diffusion with 90% haze
- Good optical clarity with controlled transmittance
- Excellent tensile and flexural strength
- Stable processing and thermal resistance
Typical Properties
| Property | Test Standard | Condition | Unit | AM2630G |
|---|---|---|---|---|
| Specific Gravity | GB/T 1033 | — | g/cm³ | 1.187 |
| Melt Flow Index | GB/T 3682 | 230℃ / 3.8 kg | g/10min | 2.0 |
| Tensile Strength | GB/T 1040 | 50 mm/min | MPa | 72 |
| Elongation at Break | GB/T 6344 | 50 mm/min | % | 1 |
| Flexural Strength | GB/T 9341 | 2 mm/min | MPa | 88 |
| Flexural Modulus | GB/T 9341 | 2 mm/min | MPa | 2700 |
| Izod Impact Strength | GB/T 1843 | 1/8 inch | kJ/m² | 2.0 |
| Light Transmittance | GB/T 2410 | — | % | 87.1 |
| Haze | GB/T 2410 | — | % | 90 |
| Heat Deflection Temp. | GB/T 1634 | 1.8 MPa | ℃ | — |
| Flammability | GB/T 2048 | 1.5 mm | Class | HB |
Injection Molding Recommendations
- Pre-drying Temperature: 60–80 ℃
- Pre-drying Time: 3–4 hours
- Melting Temperature: 210–240 ℃
- Mold Temperature: 50–70 ℃
Disclaimer
The property data listed are typical values for reference only. They are not guaranteed specifications and should not be used as inspection criteria. Users must evaluate the material under their own processing conditions to confirm suitability for intended applications. Responsibility for end-use performance lies solely with the user.
Source: Su Master New Materials (Guangdong) Co., Ltd. — Technical Data Sheet (AM2630G):contentReference[oaicite:1]{index=1}.
